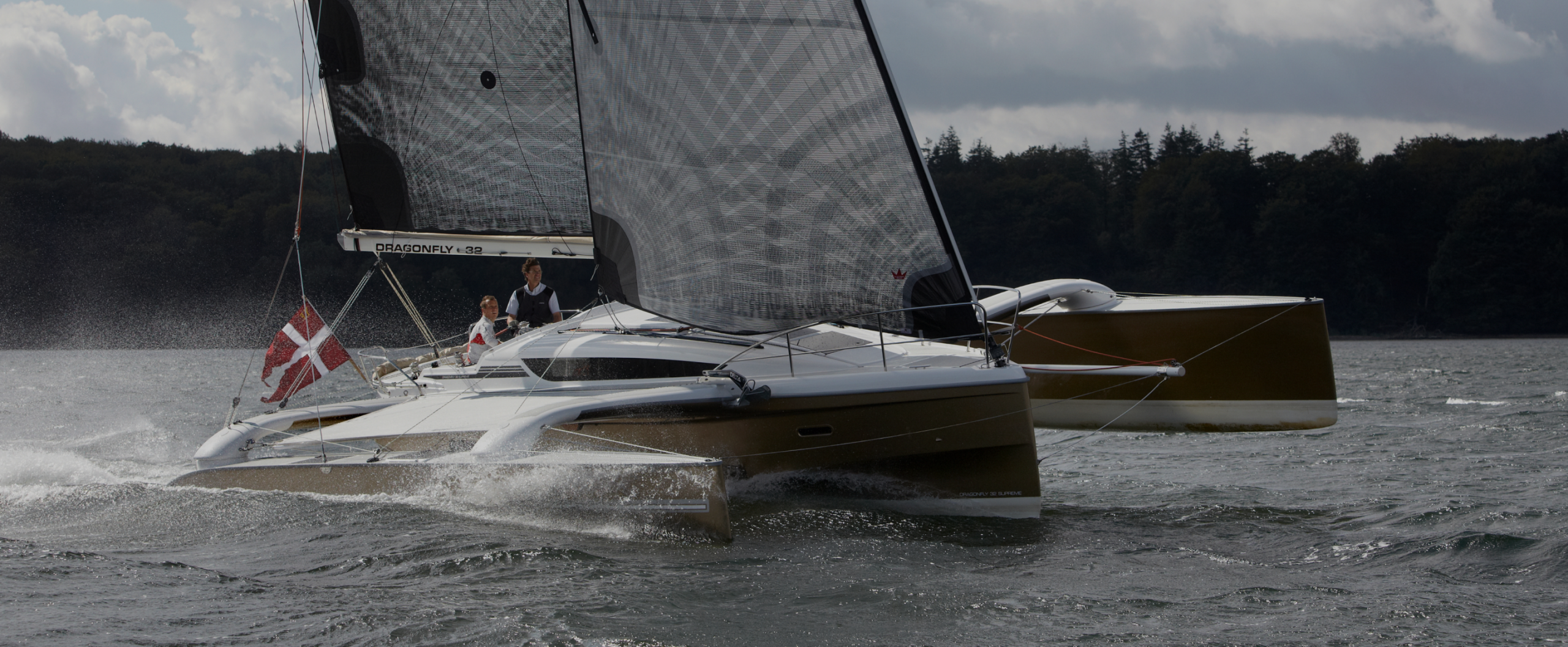

Dragonfly 32
SAILING WITH FINGERTIP CONTROL
Enjoy off-shore cruising “in the fast lane with double digit numbers in speed”
Length overall
Touring 9.80 m Evolution 9.90 m
Touring 32'15" Evolution 32'48''
Upwind sail area
87m²
936 sq.ft.
Number of berths
from 1 to 6 persons
2 cabins

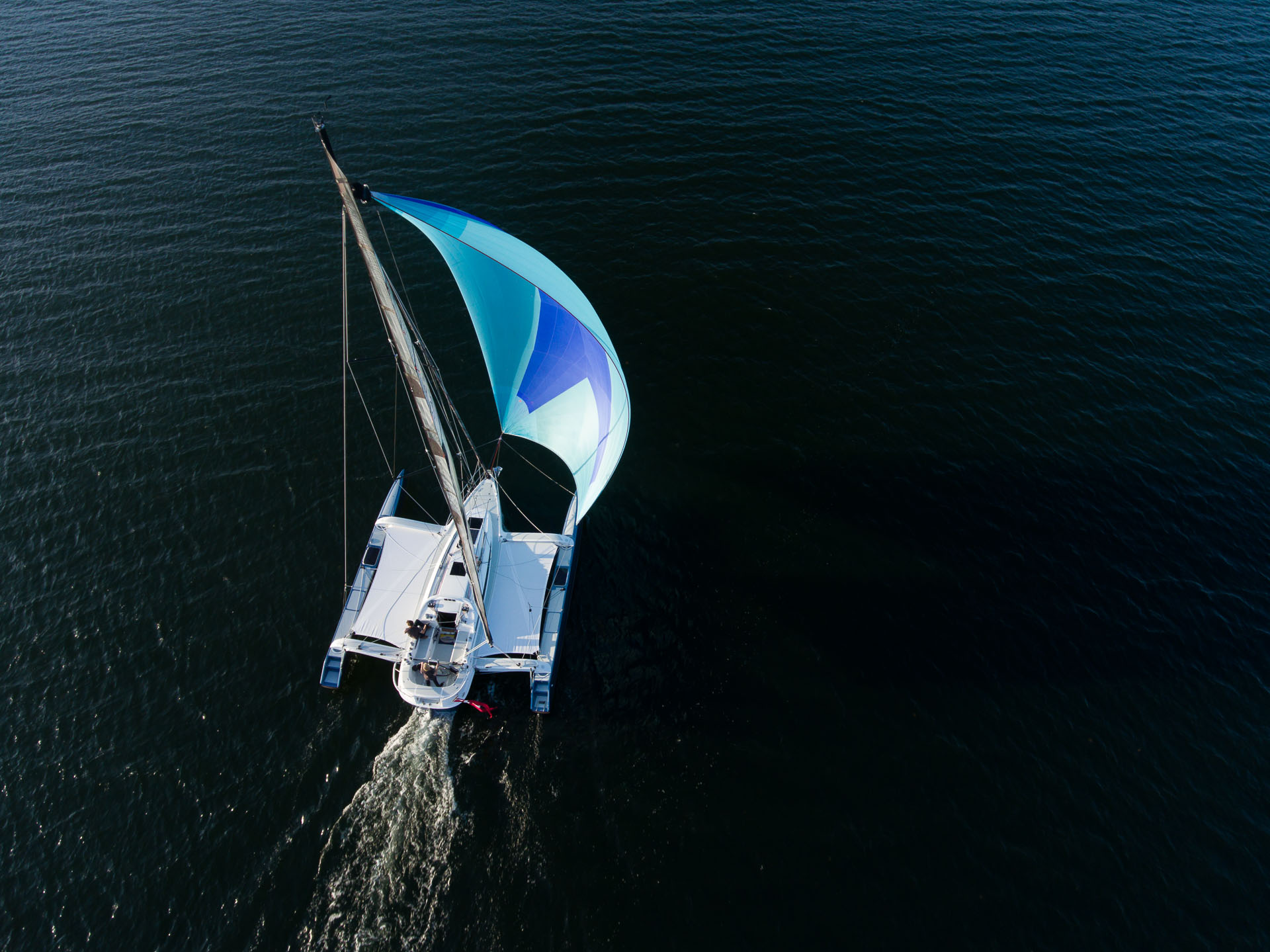

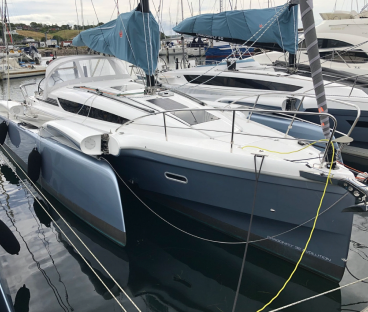

EASY SAILING OFF SHORE
Tiller or wheel steering, you will be happy to helm with “finger tip control”. You will still be able to glide in a sandy beach with this 32 footer even if you have the inboard engine version.
Foldable, your trimaran will find a berth in any marina around the world. 2 versions available: Touring and Evolution for more performance.

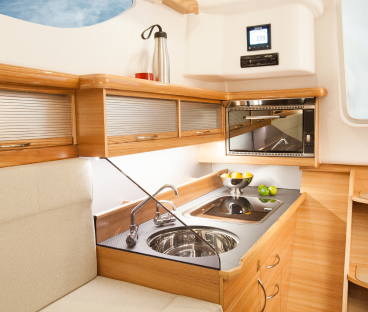

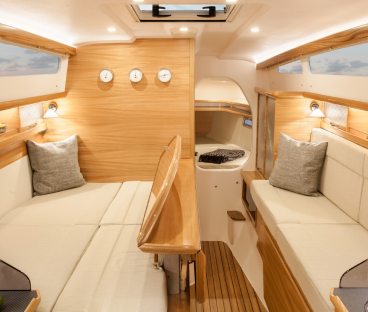

ALL YOU NEED INSIDE
The inside foldable table can accommodate up to 8 people. The main port cabin can be converted into a double berth. The galley may include an electrical oven and 2 fridges. Ready to sail across the Atlantic?

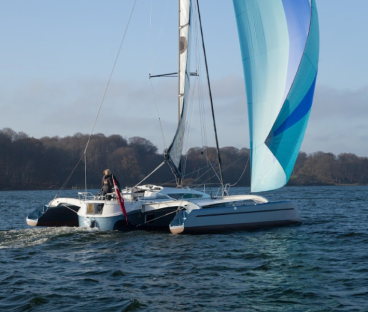

FUN & FAST SAILING
The retractable bowsprit allows for sailing with an asymmetric spi or a Code-0 with endless furling system.
Goose wing sailing can be controlled from the cockpit with no poles needed. If you opt for the Evolution powerful model, you will be able to sail as fast as the wind using theCode-O
Specifications
| Length overall centre hull | Touring 9.80 m Evolution 9.90 m |
| Length folded | Touring 11.99 m Evolution 11.89 m |
| Beam sailing | Touring 8.00 m Evolution 8.25 m |
| Beam folded | Touring 3.60 m Evolution 3.85 m |
| Draft board up | 0.55 m |
| Draft board down | 1.90 m |
| Weight of standard dry boat ready to sail (excl. extra equipment) | Touring 3,400 kg Evolution 3,450 kg |
| Payload max., incl. crew | 1,200 kg |
| Max total weight, excl. crew | 5,110 kg |
| Engine, standard | 21 Hp / 15.3 kW |
| Engine, optional | 30 Hp / 21.3 kW |
| Water capacity | 120 L |
| Diesel tank | 70 L |
| Holding tank | 60 L |
| Mast section over deck level | Touring 14.70 m Evolution 16.70 m |
| Mainsail | Touring 48 m² Evolution 58 m² |
| Furling genoa | Touring 26 m² Evolution 29 m² |
| Furling Code 0 | Touring 57 m² Evolution 66.5 m² |
| Asymmetric spinnaker | Touring 95 m² Evolution 110 m² |
| Bowsprit fixed length | Touring 1.80 m Evolution 2.00 m |
| Max. No. of persons, CE–Category A | 5 |
| Max. No. of persons, CE–Category B | 7 |
| Unsinkable | Yes |
The Dragonfly 32 in the Gulf
The Dragonfly 32 brings something rare to the Emirates: genuine sailing performance in the light breezes that dominate the Gulf. Where heavier cruisers sit becalmed, a trimaran keeps moving. Built by Quorning Boats in Denmark, the Dragonfly 32 pairs that speed with the practicality of the Swing Wing folding system — floats folded, it fits a standard marina berth, and its shallow draught lets it explore the lagoons and sandbanks along the UAE coast.
We race what we sell. Tan Services founder Xavier Bouin campaigns Dragonfly trimarans offshore — including the 2025 Rolex Fastnet Race, a class victory in the La Trinité–Cowes race and a podium overall in the ArMen Race, all aboard a Dragonfly 40 — as well as the Dubai–Muscat offshore race here in the Gulf. That first-hand racing experience feeds directly into how we specify, tune and support every Dragonfly we deliver.
Buy your Dragonfly 32 in the UAE with Tan Services
Tan Services is the official and exclusive Dragonfly dealer for the Middle East — UAE, Saudi Arabia, Qatar, Bahrain, Kuwait and Oman. Every Dragonfly 32 is delivered and commissioned locally under full factory warranty, with sea trials arranged in Dubai and rigging handled by our own team, including mast stepping and un-stepping for masts up to 26 metres.
After delivery, our technicians look after the boat where she lies: mobile servicing across the Dubai marinas, haul-out and antifouling, and a yearly maintenance programme from AED 900 per month. To talk layouts, specifications and delivery times for the Dragonfly 32, contact Xavier and the team.
