Dragonfly 40
The performance cruiser: unfold your horizons
A world class trimaran with unique features, Dragonfly flagship. Racy and racing
Length overall
12,40 m
40'
Upwind sail area
131 m²
1,410 sq.ft.
Number of berths
from 1 to 8 persons
2 cabins
COMFORTABLE & PERFORMANT TRIMARAN

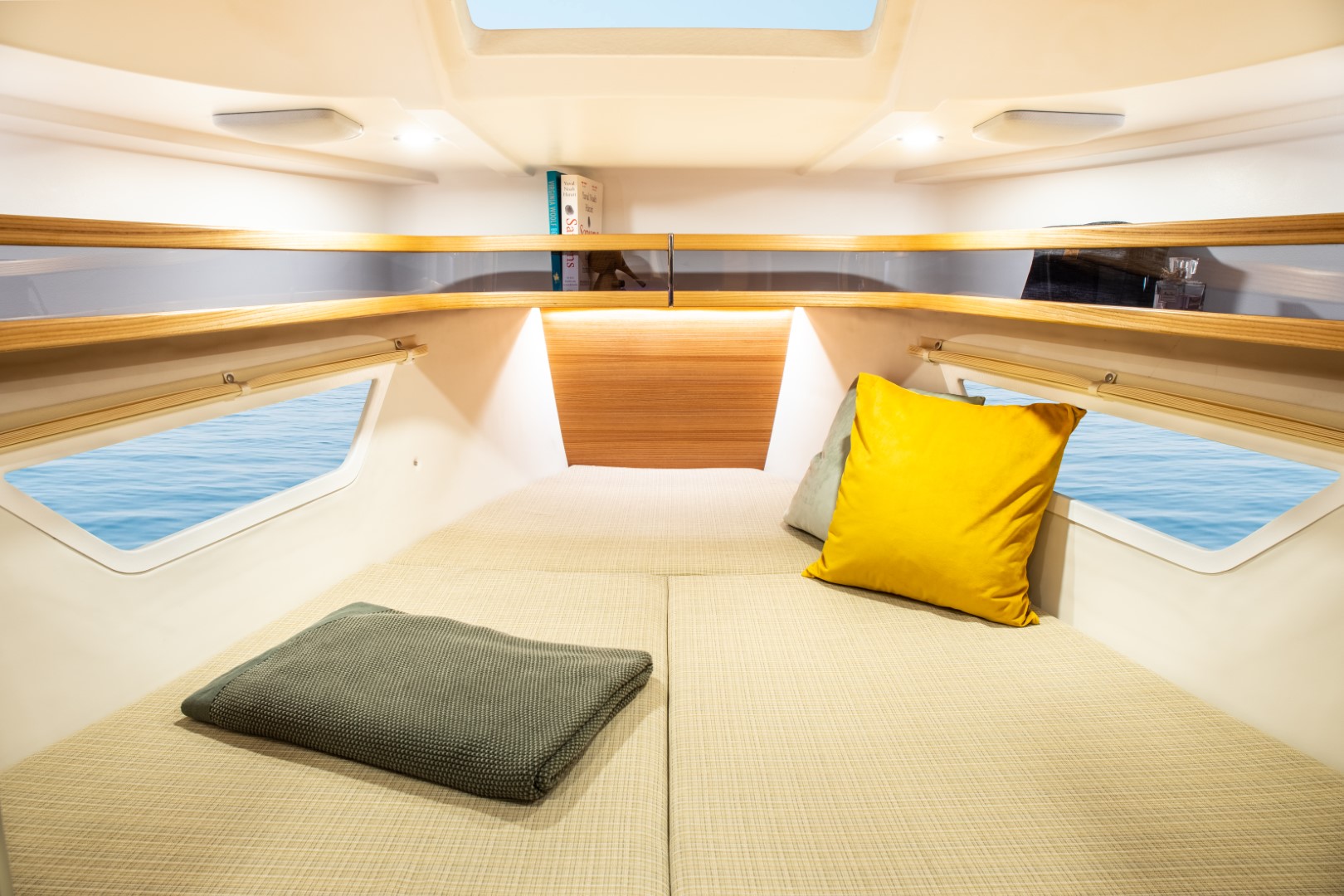

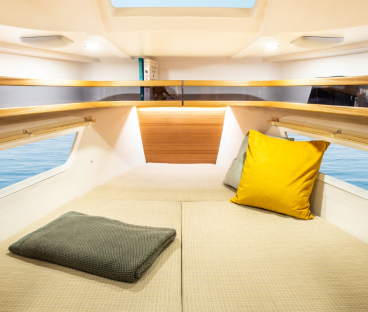

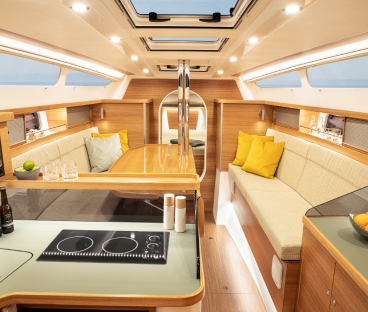

2 separate double cabins, enclosed toilet and shower, convivial dining table for 8 people and a functional galley without compromising the boat performances was a performance itself, fully achieved by the shipyard.

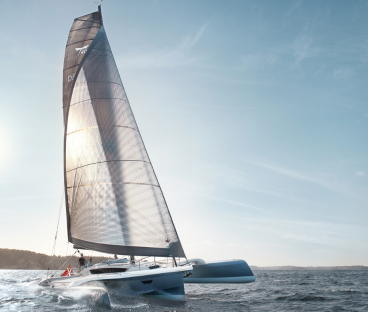

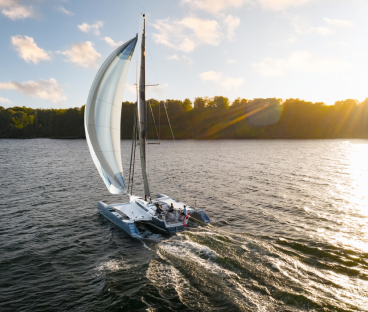

4 VERSIONS TO SUIT YOUR PROGRAM
All DF 40 come in standard with Carbon mast and upwind sails.
The standard Touring version comes with a self-tacking jib, the Ultimate version has a taller and more powerful rig, the Carbon Ultimate with carbon floats, beam forward and aft structural main
bulkheads. The Performance Carbon have it all with an even taller mast and more powerful rig.

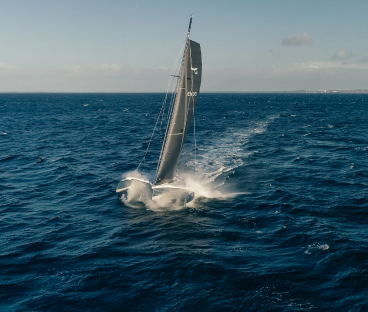

FAST but STILL EASY TO HANDLE

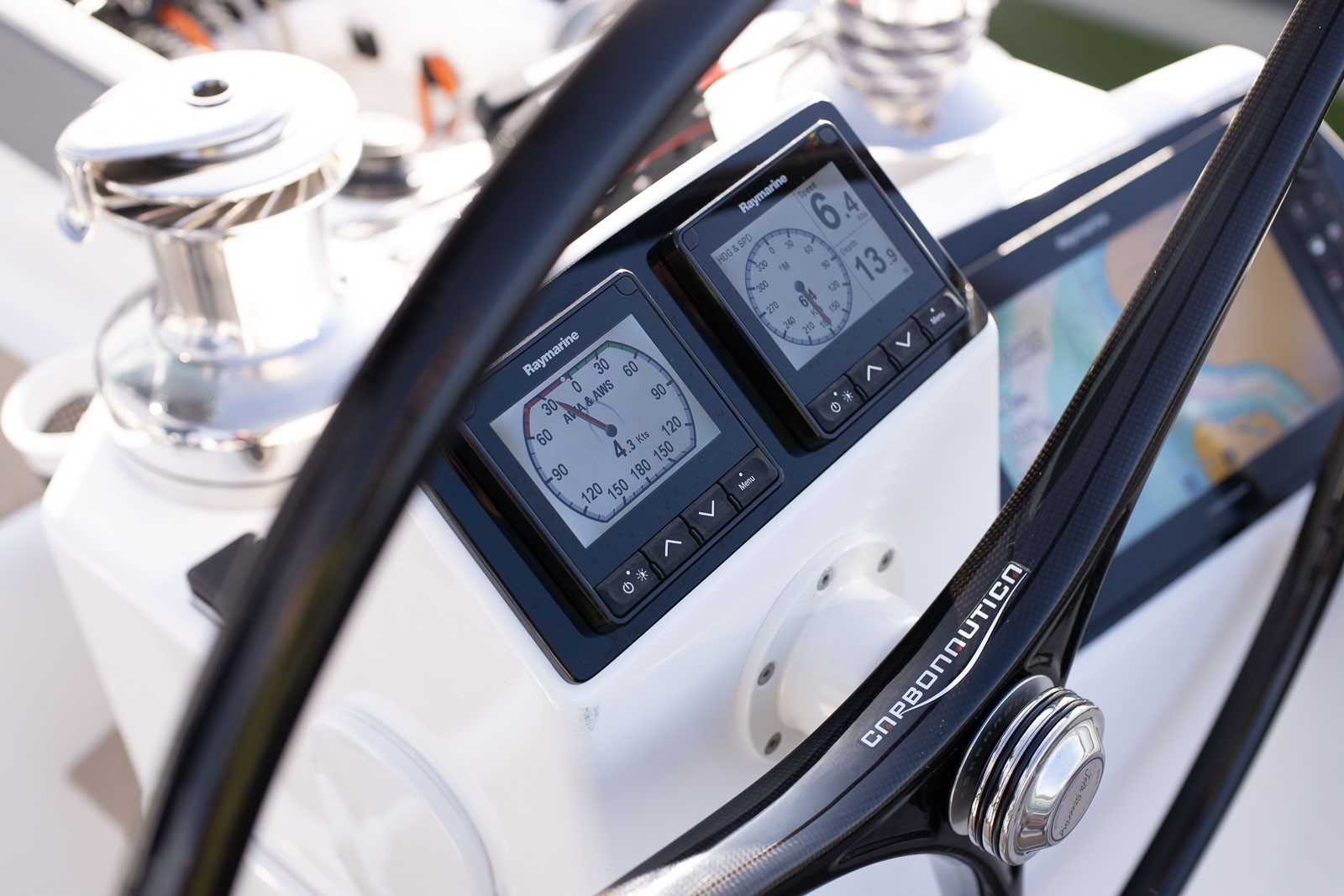

Twin steering wheels systems with all lines and functions led back to 4 electric winches for an easy and safe control. Full electrical furling systems to handle all the sails including the Code-0 for a comfortable handling.
Easy control of the main sheet with a 6:1 purchase center mainsheet system led to both sides under deck up to the outside electrical winch. It goes with a mainsail preventer system on both sides to control the big roach and avoid any uncontrolled gybing. Less that 10 tons, a mast up to 20.5m, mainsail 83 m2, gennaker 150 m2, furling code 90 m2, enjoy this masterpiece.
Specifications
| Length overall centre hull | 12.40 m |
| Length waterline centre hull | 11.50 m |
| Length folded | 14.17 m |
| Beam sailing | 8.40 m |
| Beam folded | 4.00 m |
| Draft board up | 0.70 m |
| Draft board down | 2.20 m |
| Weight of standard dry boat ready to sail (excl. extra equipment) | 5,900 kg |
| Max total weight, incl. crew | Touring 9,000 kg C Performance 8,000 kg |
| Max total weight, excl. crew | Touring 7,900 kg C Performance 6,800 kg |
| Engine, standard | 40 Hp / 29.4 kW |
| Engine, optional | 57 Hp / 41.9 kW |
| Water capacity | 220 L |
| Diesel tank | 150 L |
| Holding tank | 75 L |
| Mast section, carbon | Touring 17.50 m C Performance 20.50 m |
| Mast height over water level excl. antennas | Touring 18.80 m C Performance 22.30 m |
| Mainsail 65 m² 87 m² | Touring 65 m² C Performance 87 m² |
| Self-tacking jib | Touring 25 m² C Performance 30 m² |
| Furling genoa | Touring 33 m² C Performance 44 m² |
| Furling Code 0 | Touring 65 m² C Performance 90 m² |
| Gennaker | Touring 110 m² C Performance 150 m² |
| Bowsprit fixed length | 0.75 m |
| Max. No. of persons, CE–Category A | 6 |
| Max. No. of persons, CE–Category B | 8 |
| Unsinkable | Yes |
