Dragonfly 36
FAST, FUNCTIONAL & RELAXING
Enjoy this new Performance Cruiser
Length overall
11,5 m
36'
Upwind sail area
110 m2
1,184 sq.ft.
Number of berths
from 1 to 7 persons
2 cabins

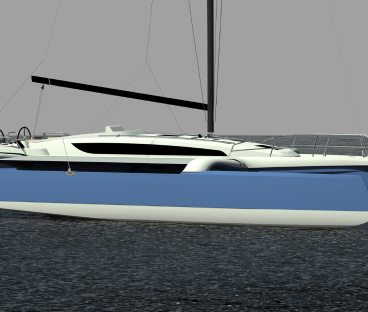

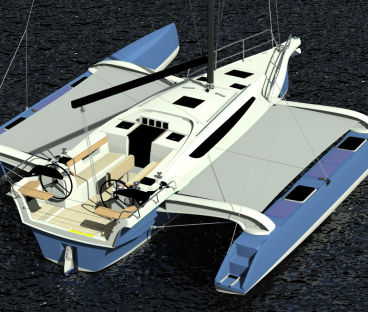

SAILING OFFSHORE IS CALLING
This exceptional cruiser/racer sets a new standard for offshore sailing, prioritizing both safety and family-friendly features, making it an ideal choice for unforgettable voyages .

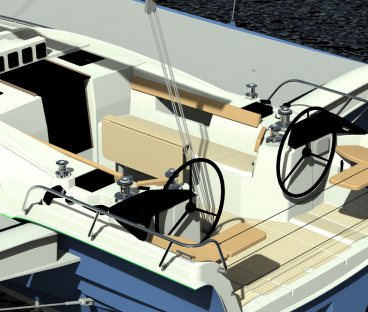

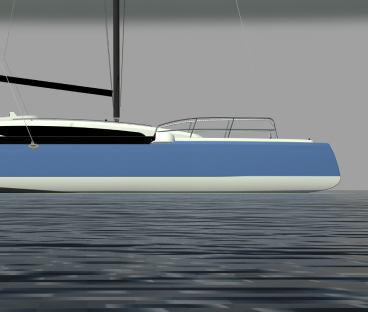

FUN & FAST SAILING
With its new innovative wave-piercing main hull design and a strong emphasis on easy handling and shorthanded sailing, she is perfect for families and sailing enthusiasts.

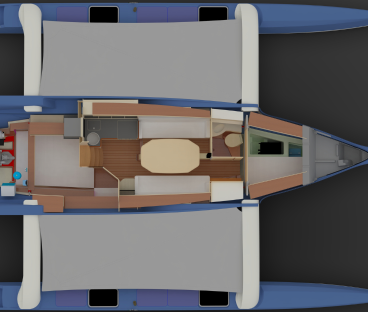

SPACE & FUNCTIONALITY OPTIMIZED

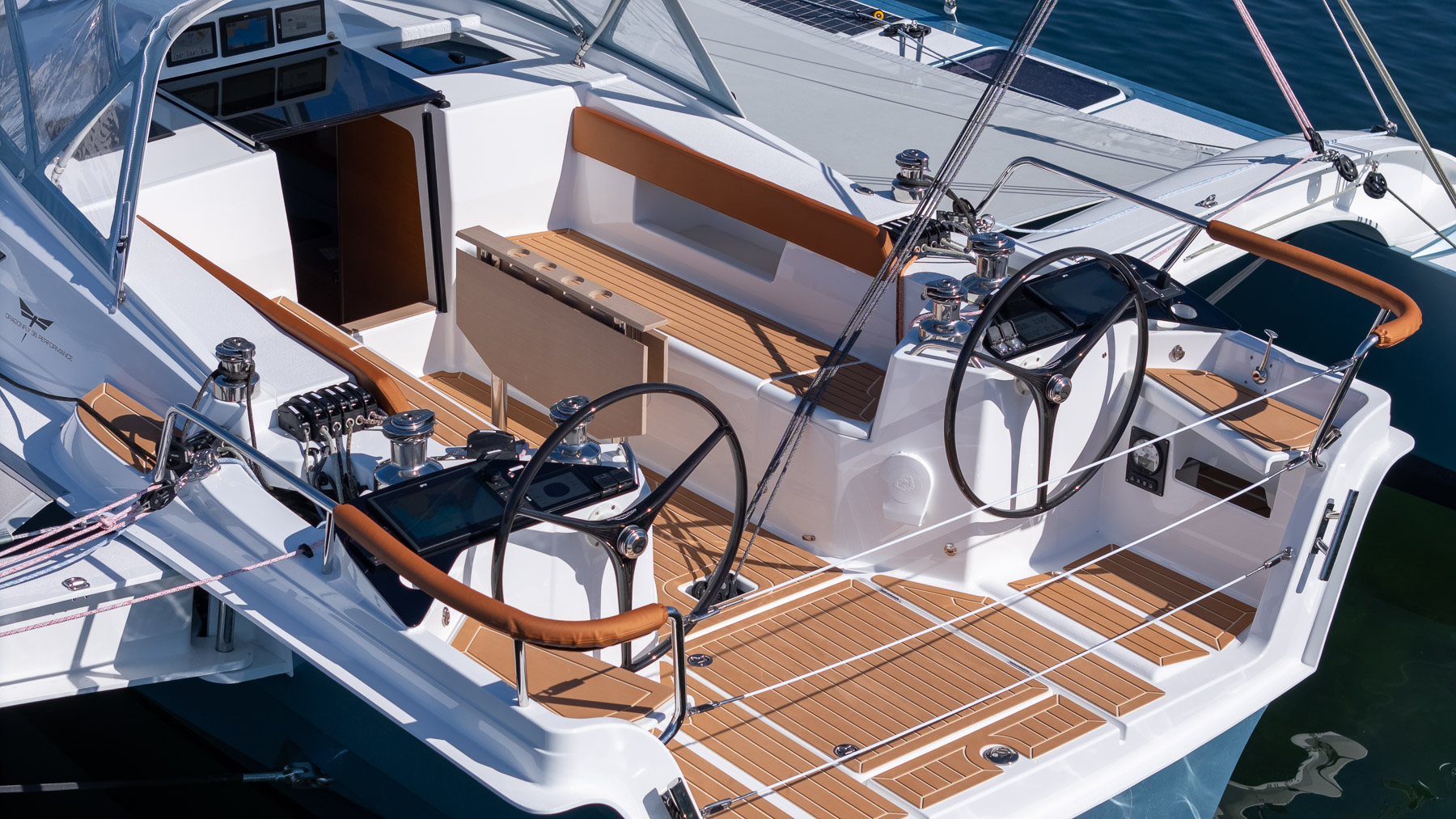

The generous outside cockpit as well as the inside saloon invite for relaxation and social interaction. With optimized space, the galley gains of functionality.
Specifications
| Length overall centre hull | 11.55 m |
| Length waterline centre hull | 10.90 m |
| Length folded | 13.43 m |
| Beam sailing | 8.12 m |
| Beam folded | 3.70 m |
| Draft board up | 0.67 m |
| Draft board down | 2.00 m |
| Weight of standard dry boat ready to sail (excl. extra equipment) | 4,500 kg |
| Max total weight, incl. crew | 6,700 kg |
| Max total weight, excl. crew | 6,000 kg |
| Engine, standard | 30 Hp / 21.3 kW |
| Engine, optional | 40 Hp / 29.4 kW |
| Water capacity | 200 L |
| Diesel tank | 70 L |
| Holding tank | 80 L |
| Mast section, carbon | Touring 16.50 m Performance 18.50 m |
| Mainsail | Touring 61 m² Performance 73 m² |
| Self-tacking jib | Touring (29) m² Performance (30) m² |
| Furling genoa | Touring 32.5 m² Performance 37 m² |
| Furling Code 0 | Touring 55 m² Performance 67 m² |
| Asymmetric spinnaker | Touring 125 m² Performance 145 m² |
| Bowsprit fixed length | 0.90 m |
| Max. No. of persons, CE–Category A | 5 |
| Max. No. of persons, CE–Category B | 7 |
| Unsinkable | Yes |
