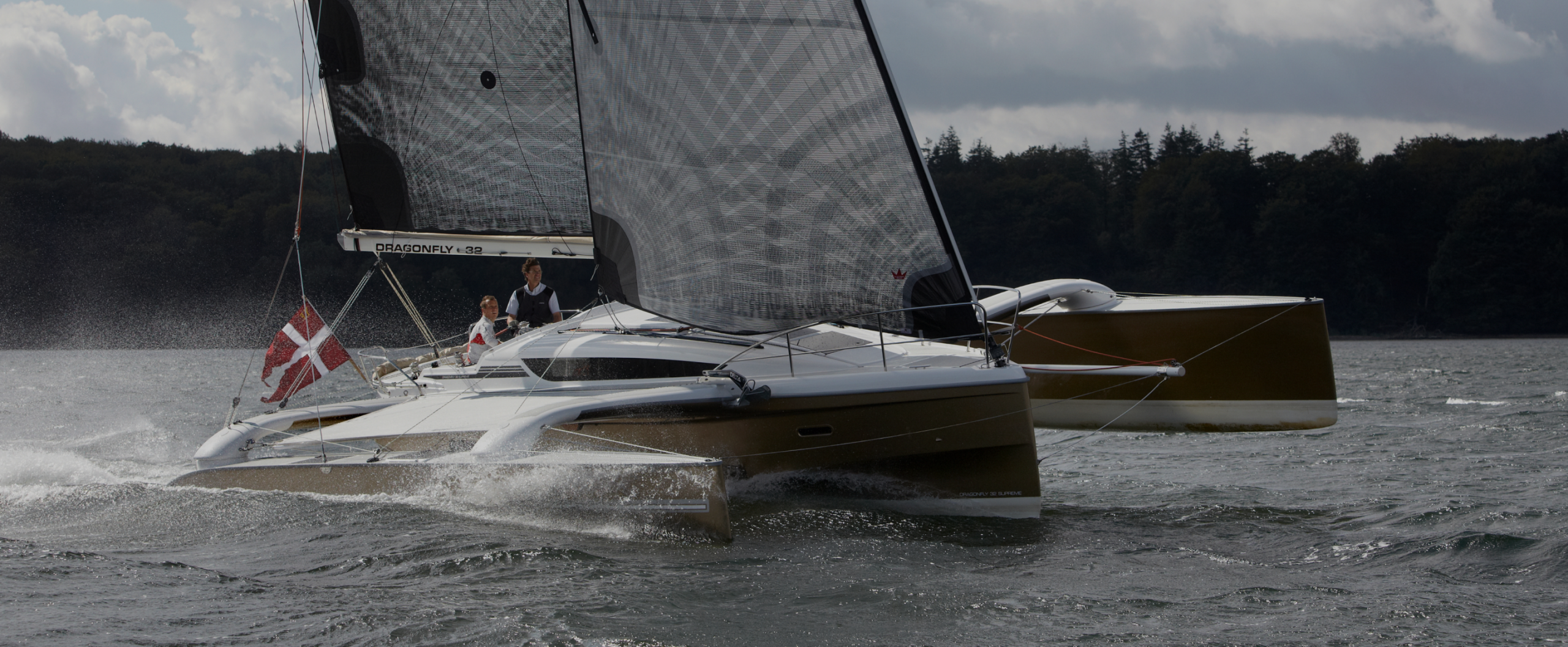

Dragonfly 32
SAILING WITH FINGERTIP CONTROL
Enjoy off-shore cruising “in the fast lane with double digit numbers in speed”
Length overall
Touring 9.80 m Evolution 9.90 m
Touring 32'15" Evolution 32'48''
Upwind sail area
87m²
936 sq.ft.
Number of berths
from 1 to 6 persons
2 cabins

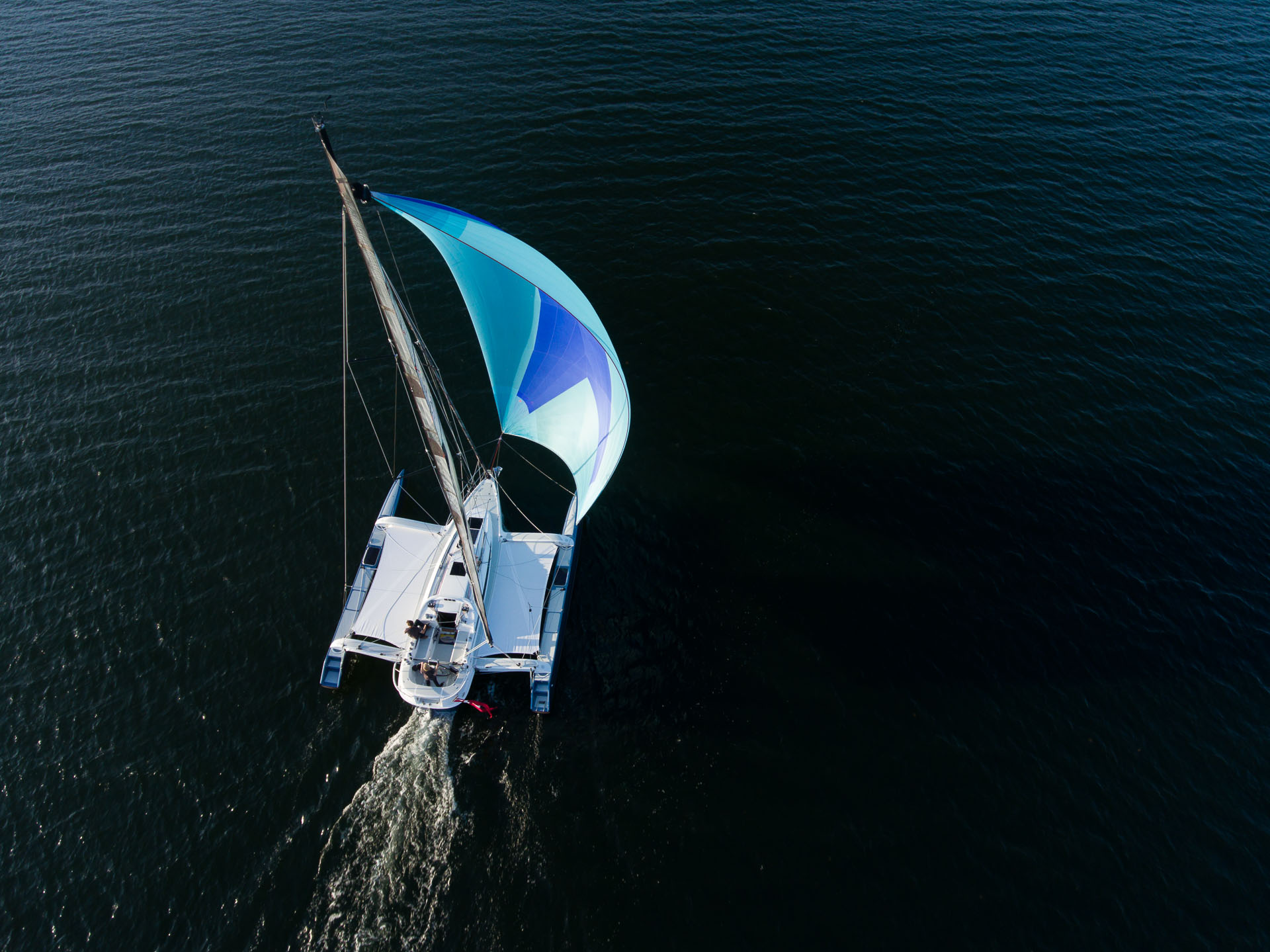

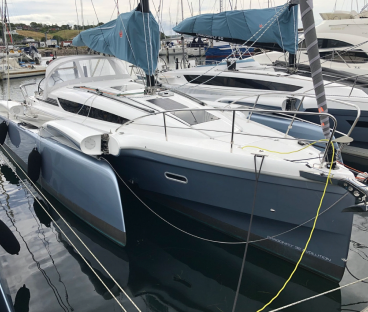

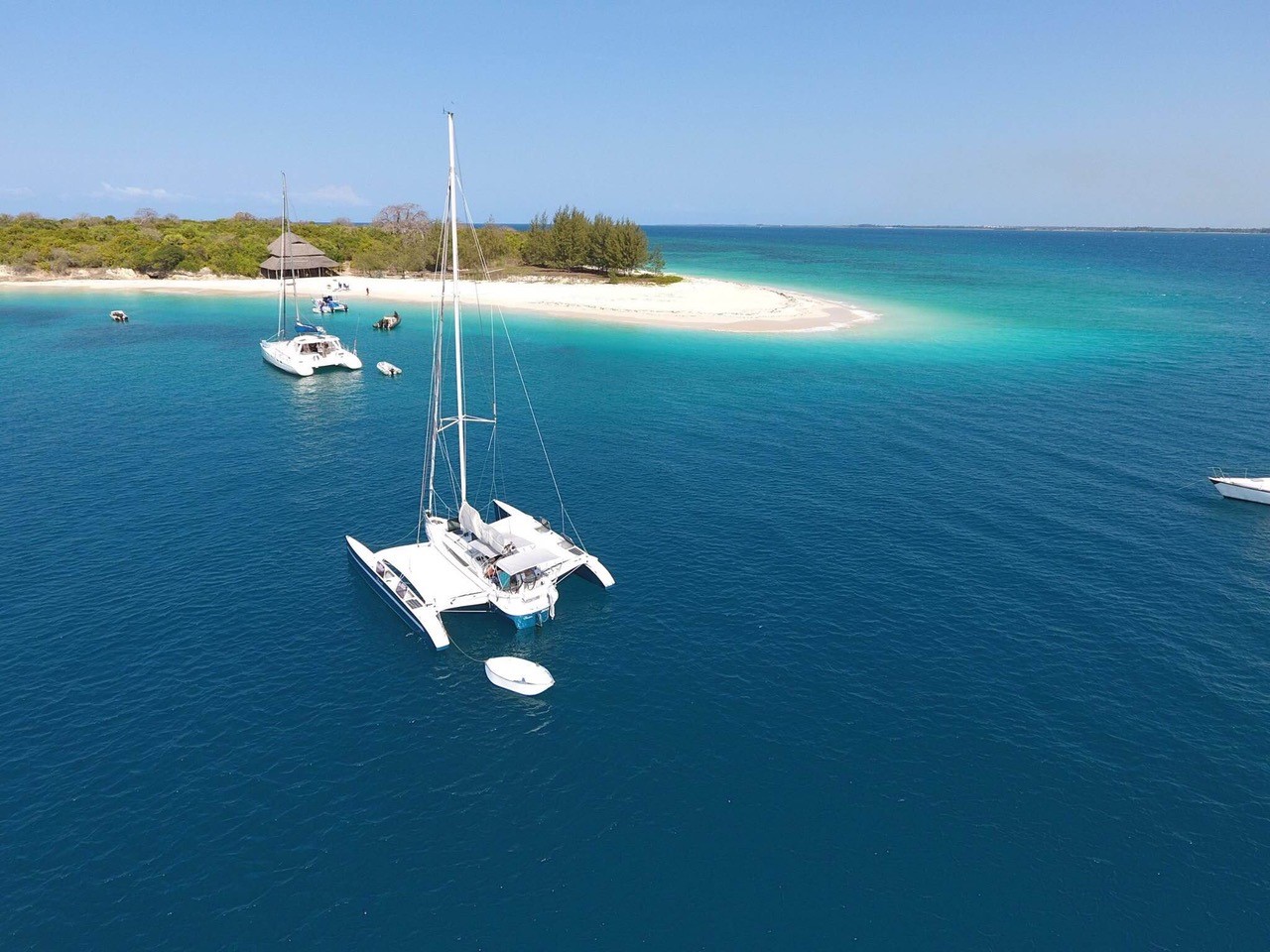

EASY SAILING OFF SHORE
Tiller or wheel steering, you will be happy to helm with “finger tip control”. You will still be able to glide in a sandy beach with this 32 footer even if you have the inboard engine version.
Foldable, your trimaran will find a berth in any marina around the world. 2 versions available: Touring and Evolution for more performance.

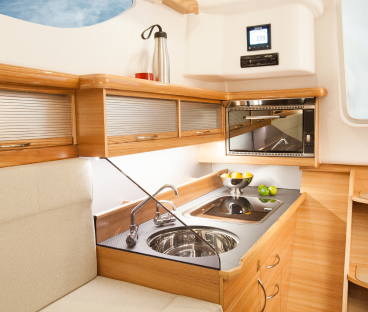

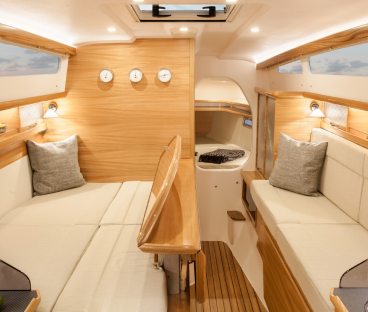

ALL YOU NEED INSIDE
The inside foldable table can accommodate up to 8 people. The main port cabin can be converted into a double berth. The galley may include an electrical oven and 2 fridges. Ready to sail across the Atlantic?

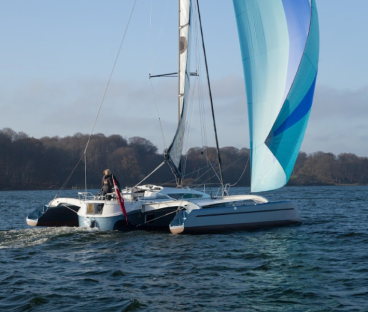

FUN & FAST SAILING
The retractable bowsprit allows for sailing with an asymmetric spi or a Code-0 with endless furling system.
Goose wing sailing can be controlled from the cockpit with no poles needed. If you opt for the Evolution powerful model, you will be able to sail as fast as the wind using theCode-O
Specifications
| Length overall centre hull | Touring 9.80 m Evolution 9.90 m |
| Length folded | Touring 11.99 m Evolution 11.89 m |
| Beam sailing | Touring 8.00 m Evolution 8.25 m |
| Beam folded | Touring 3.60 m Evolution 3.85 m |
| Draft board up | 0.55 m |
| Draft board down | 1.90 m |
| Weight of standard dry boat ready to sail (excl. extra equipment) | Touring 3,400 kg Evolution 3,450 kg |
| Payload max., incl. crew | 1,200 kg |
| Max total weight, excl. crew | 5,110 kg |
| Engine, standard | 21 Hp / 15.3 kW |
| Engine, optional | 30 Hp / 21.3 kW |
| Water capacity | 120 L |
| Diesel tank | 70 L |
| Holding tank | 60 L |
| Mast section over deck level | Touring 14.70 m Evolution 16.70 m |
| Mainsail | Touring 48 m² Evolution 58 m² |
| Furling genoa | Touring 26 m² Evolution 29 m² |
| Furling Code 0 | Touring 57 m² Evolution 66.5 m² |
| Asymmetric spinnaker | Touring 95 m² Evolution 110 m² |
| Bowsprit fixed length | Touring 1.80 m Evolution 2.00 m |
| Max. No. of persons, CE–Category A | 5 |
| Max. No. of persons, CE–Category B | 7 |
| Unsinkable | Yes |
