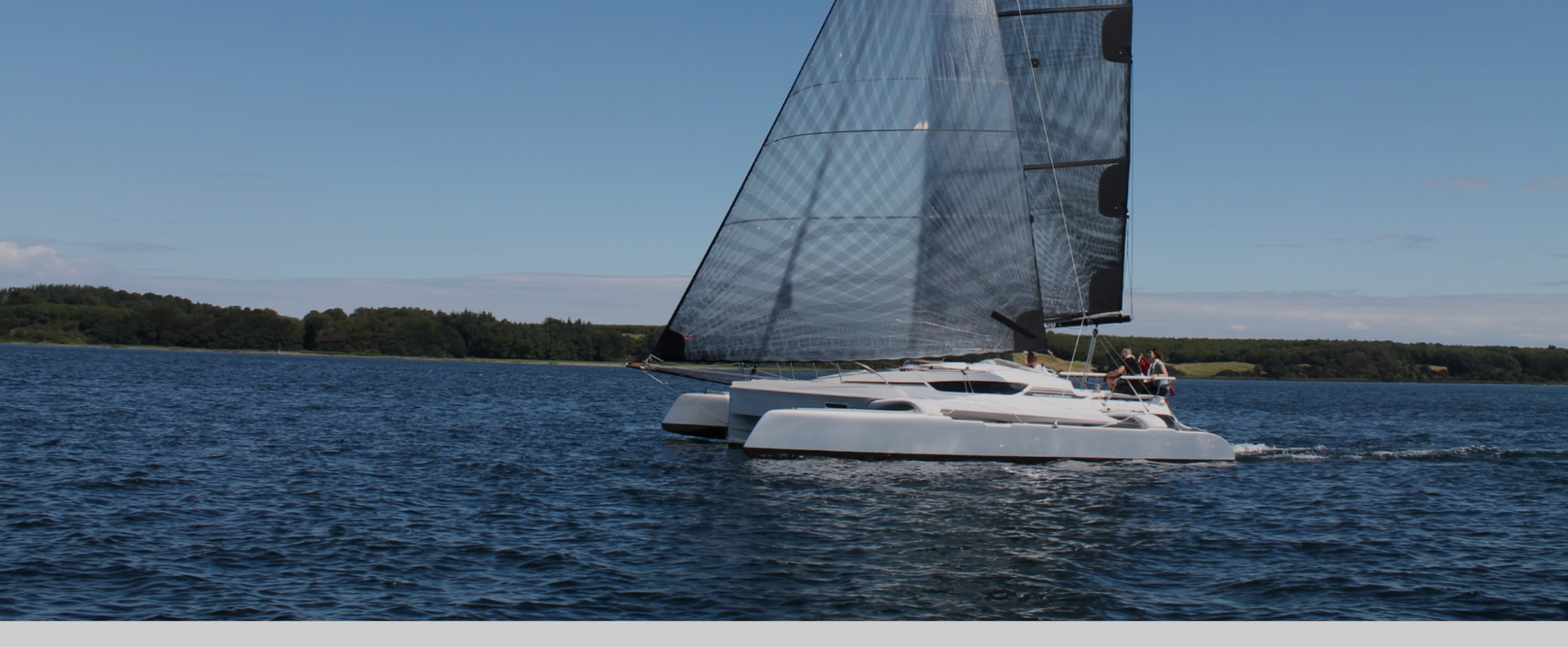

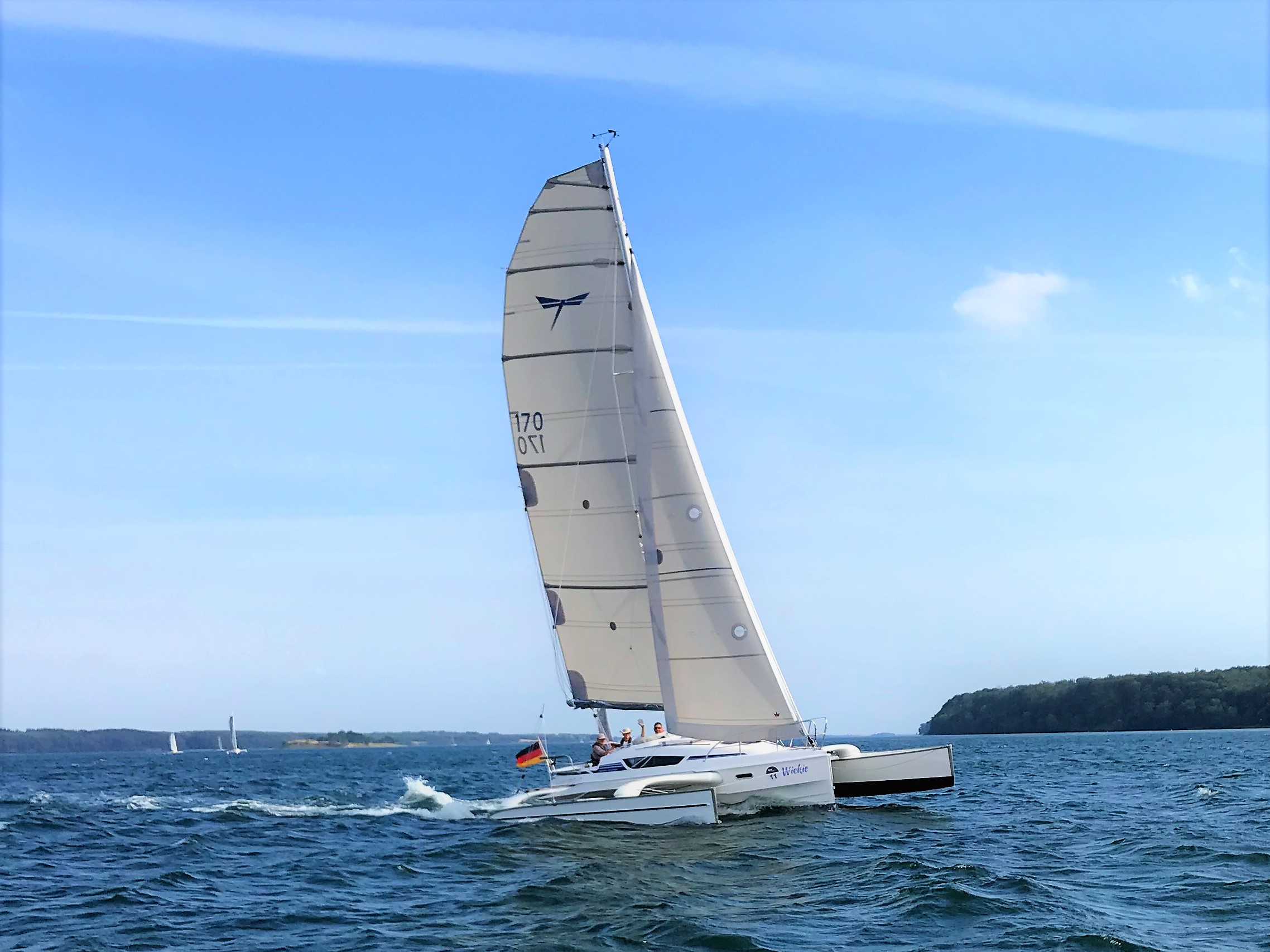

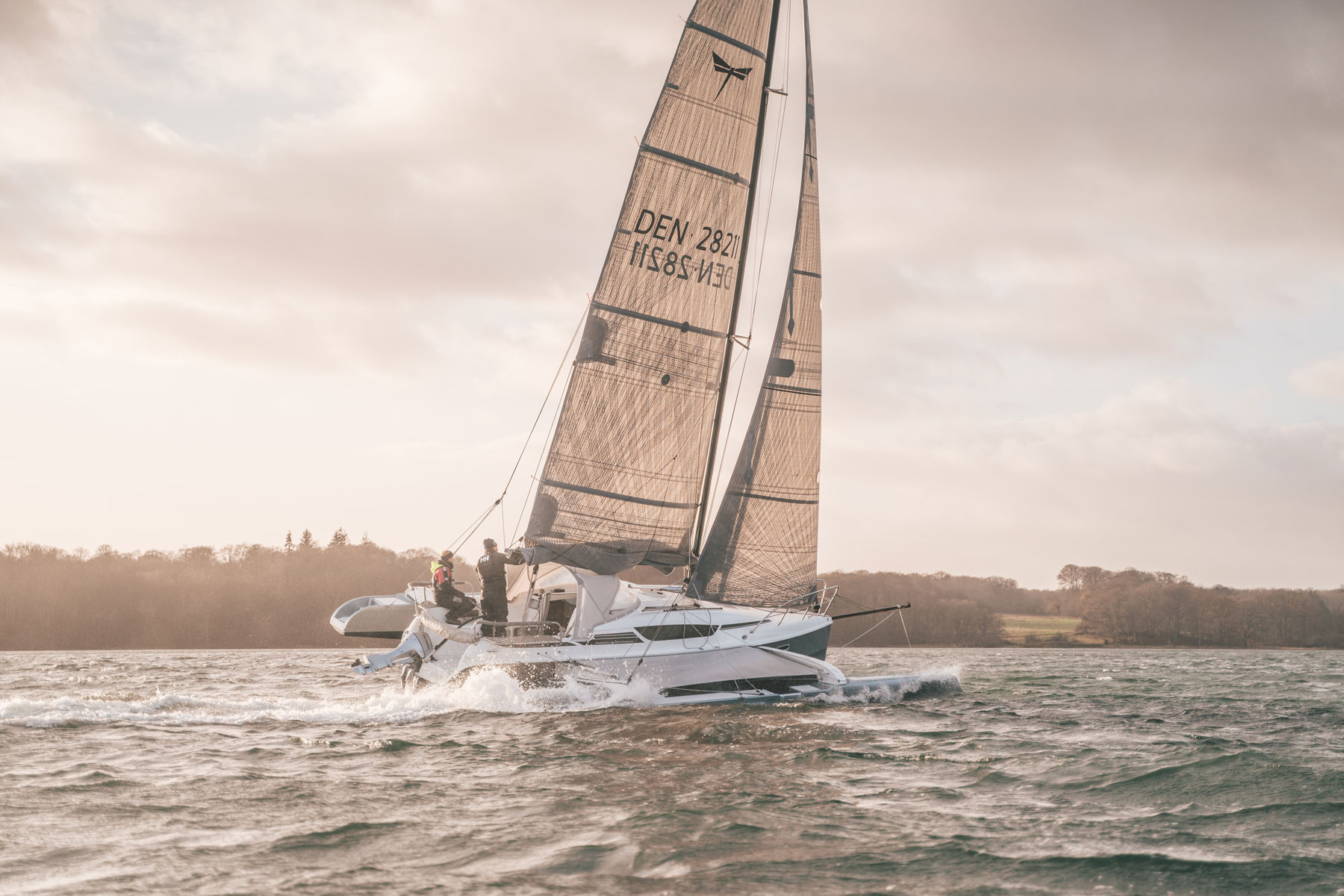

Dragonfly 28
The perfect “pocket cruiser”
The first of brand new range power catamaran and new life on board.
Length overall
9m
91'8''
Upwind sail area
64m²
688 sq.ft.
Number of berths
from 1 to 7 persons
3 cabins

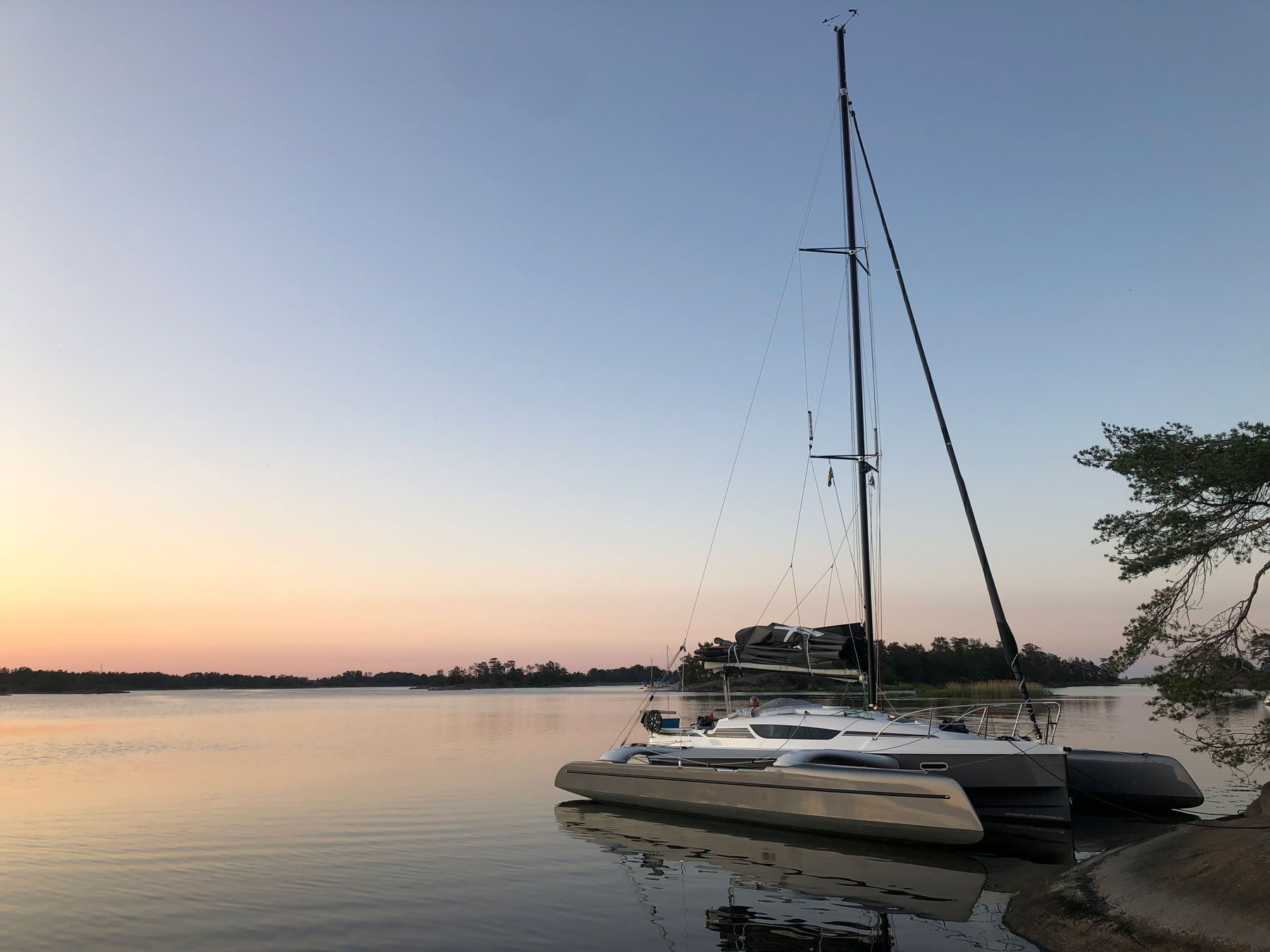

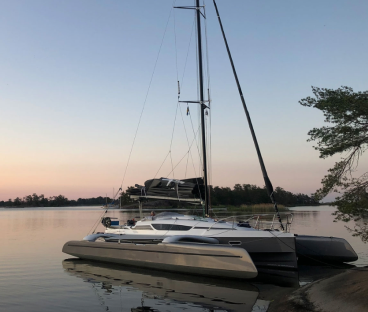

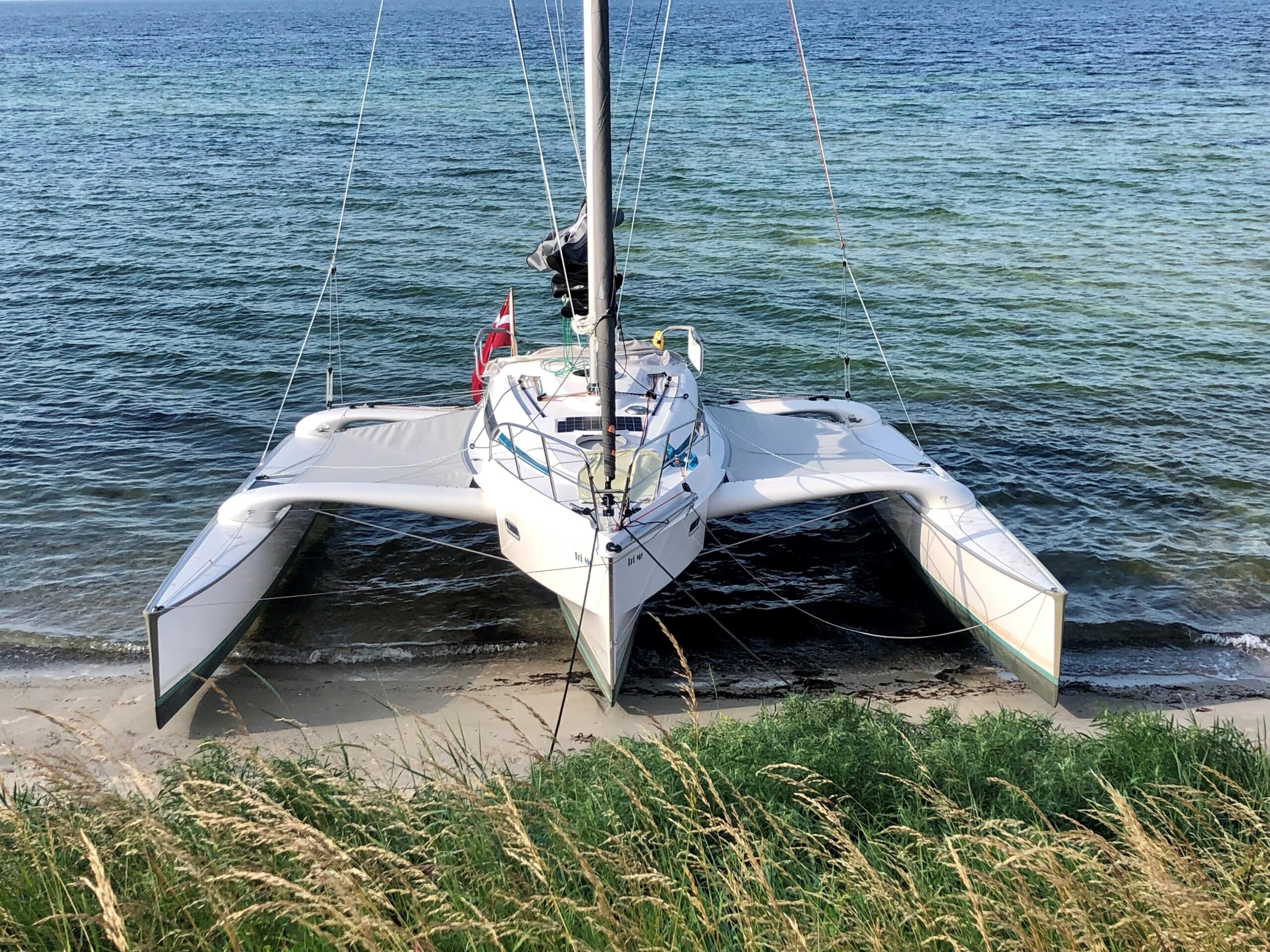

THE FREEDOM CRUISER

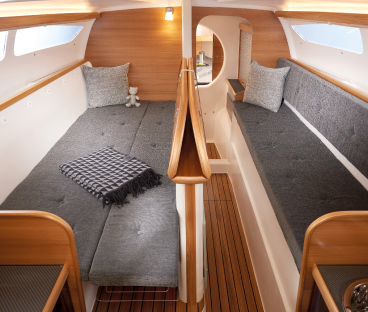

With 2 real cabins and a saloon, this trimaran can accommodate up to 7 people.
Trailable, she offers flexibility. With a hull draft of 40 cm, you can anchor in shallow water or even “beach” where no one else can go.

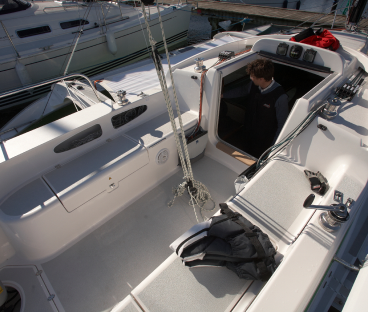

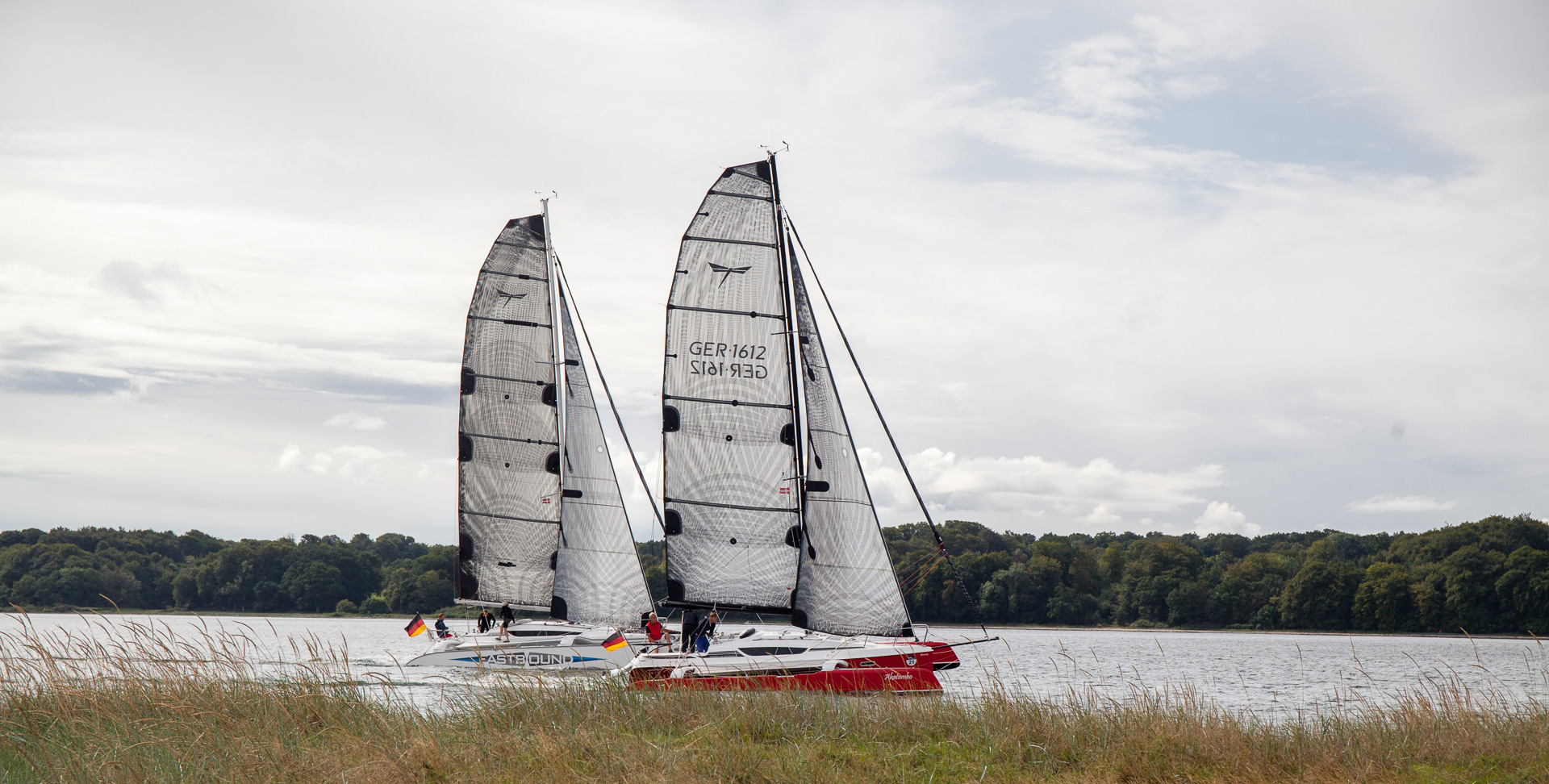

2 VERSIONS: Touring and Performance
Trailable family cruiser or trailable in and offshore racer, the choice is yours

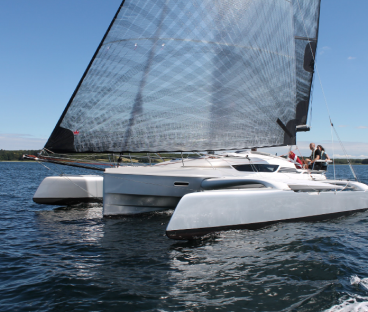

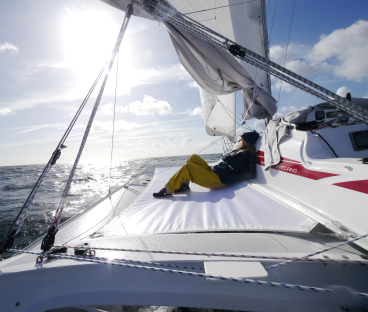

FUN CRUISING AND RACING
Plenty of deck space thanks to 2 large trampolines, easy to helm with a tiller always in full balance, huge stability, upright sailing this comfortable boat can be sailed singled handed cruising or racing.
Specifications
| Length overall centre hull | 9.00 m |

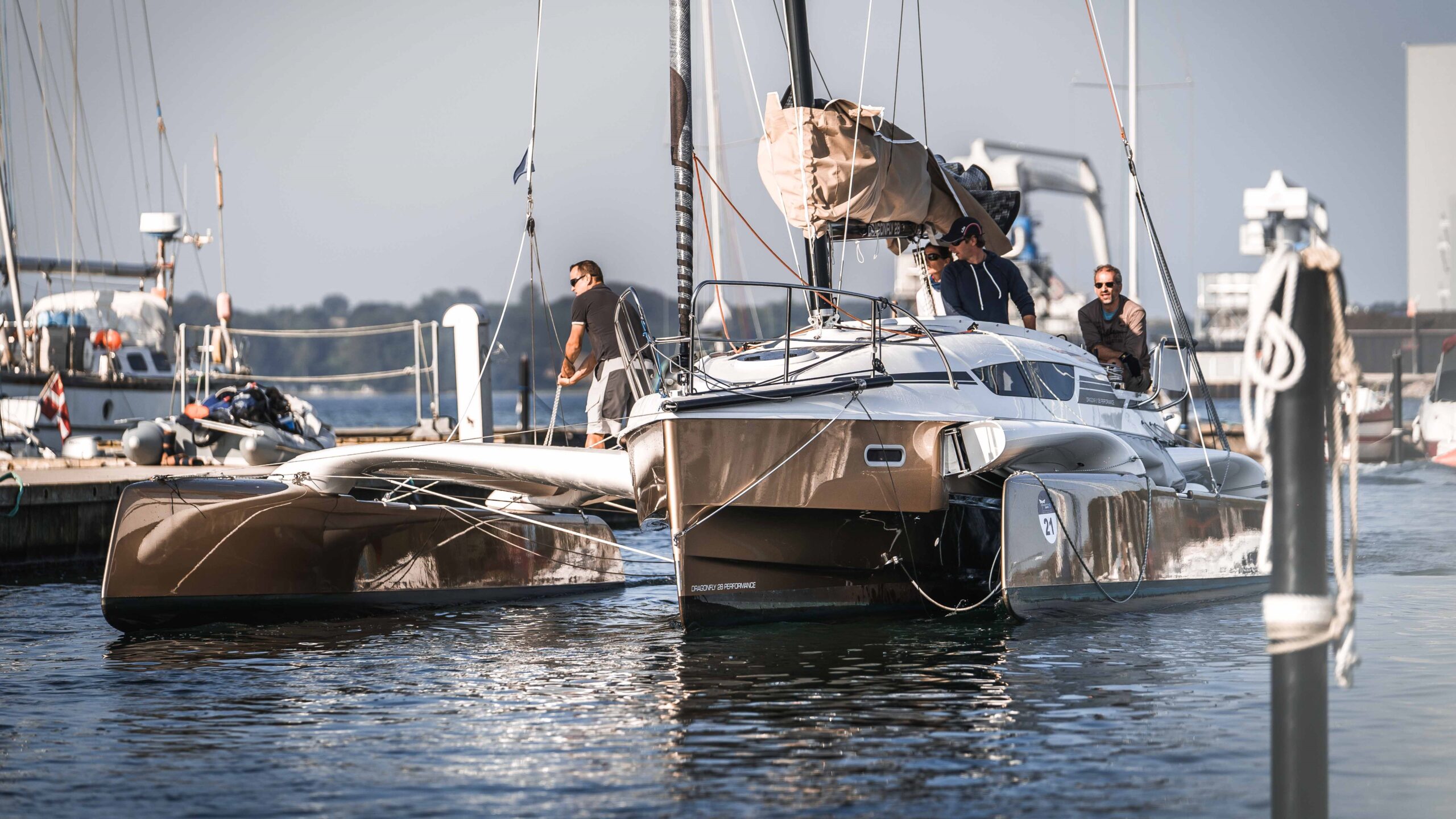

| Length folded | Touring 9.99 m Performance 10.40 m |
| Beam sailing | 6.50 m |
| Beam folded | 2.54 m |
| Draft board up | 0.40 m |
| Draft board down | 1.70 m |
| Weight of standard dry boat ready to sail (excl. extra equipment) | 2,100 kg |
| Payload max., incl. crew | 750 kg |
| Engine, outboard | 15 HP |
| Water capacity | 90 L |
| Holding tank | 60 L |
| Mast section total, excl. antennas | Touring 12.10 m Performance 13.60 m |
| Mainsail | Touring 37 m² Performance 43 m² |
| Furling jib | Touring 18.5 m² Performance 21.5 m² |
| Furling Code 0 | Touring 37 m² Performance 45 m² |
| Asymmetric spinnaker | Touring 60 m² Performance 83 m² |
| Bowsprit length 1.60 m 1.90 m | Touring 1.60 m Performance 1.90 m |
| Max. No. of persons, CE–Category B | 5 |
| Max. No. of persons, CE–Category C | 7 |
| Unsinkable | Yes |
